Topology & Architecture
Buck, boost, buck-boost, SEPIC/Ćuk, flyback, forward, LLC, phase-shift, PFC front-ends, and inverters — chosen for your power, isolation, and efficiency targets.
Consultancy · Converter Development
Power converters engineered for efficiency, control & reliability
We design AC-DC, DC-AC, and DC-DC converters that perform in the real world — topology selection, magnetics, closed-loop control, simulation, prototyping, and efficiency & EMI testing. A simulation-first workflow built on the same power-electronics engineering we teach and ship, from 12 W to 2 kW.
PWM · InductorRegulated DC Output
Every converter is proven in simulation — switching, magnetics, and control — then verified on the bench for efficiency and EMI.
12W–2kWPower range experience
AC·DC·ACConverter topologies
>90%Efficiency targets
Sim→BenchValidated designs
What We Deliver
Complete converter engineering, from topology to tested hardware
Power stage, magnetics, control, thermal, and EMI are engineered together — because a converter only works when every part of it works with the others.
Magnetics & Power Stage
Inductor and transformer design (core, turns, air gap, losses) with switch and diode selection, gate drive, and snubbers designed as one power stage.
Closed-Loop Control
Voltage- and current-mode control, compensator design, and stability (bode, phase margin) validated in simulation for clean, robust regulation.
Thermal & Reliability
Loss budgeting, heatsinking, and derating so the converter runs cool and lasts under real load, ambient, and stress conditions.
EMI/EMC-Aware Design
Layout, filtering, and switching strategy that keep conducted and radiated emissions in check and move you toward pre-compliance.
Testing & Efficiency
Measured efficiency curves, line/load regulation, ripple, and thermal data against targets — with iteration until the numbers hold.
Our Process
A clear, six-step path from spec to a tested converter
Predictable stages, checkpoints you can review, and a measured, working converter at the end.
Step 01 · Requirements
Requirements & Specs
Input and output voltage range, power level, isolation, efficiency, size, and environment are captured into a clear, testable specification.
- Input/output range & power defined
- Isolation, efficiency & size targets
- Environment & standards noted
Step 02 · Topology
Topology Selection
The right converter topology is chosen through a trade-off study and a feasibility check against your targets before any detailed design.
- Buck / boost / LLC / flyback evaluated
- Trade-off: efficiency, cost, size
- Topology confirmed vs. targets
Step 03 · Simulation

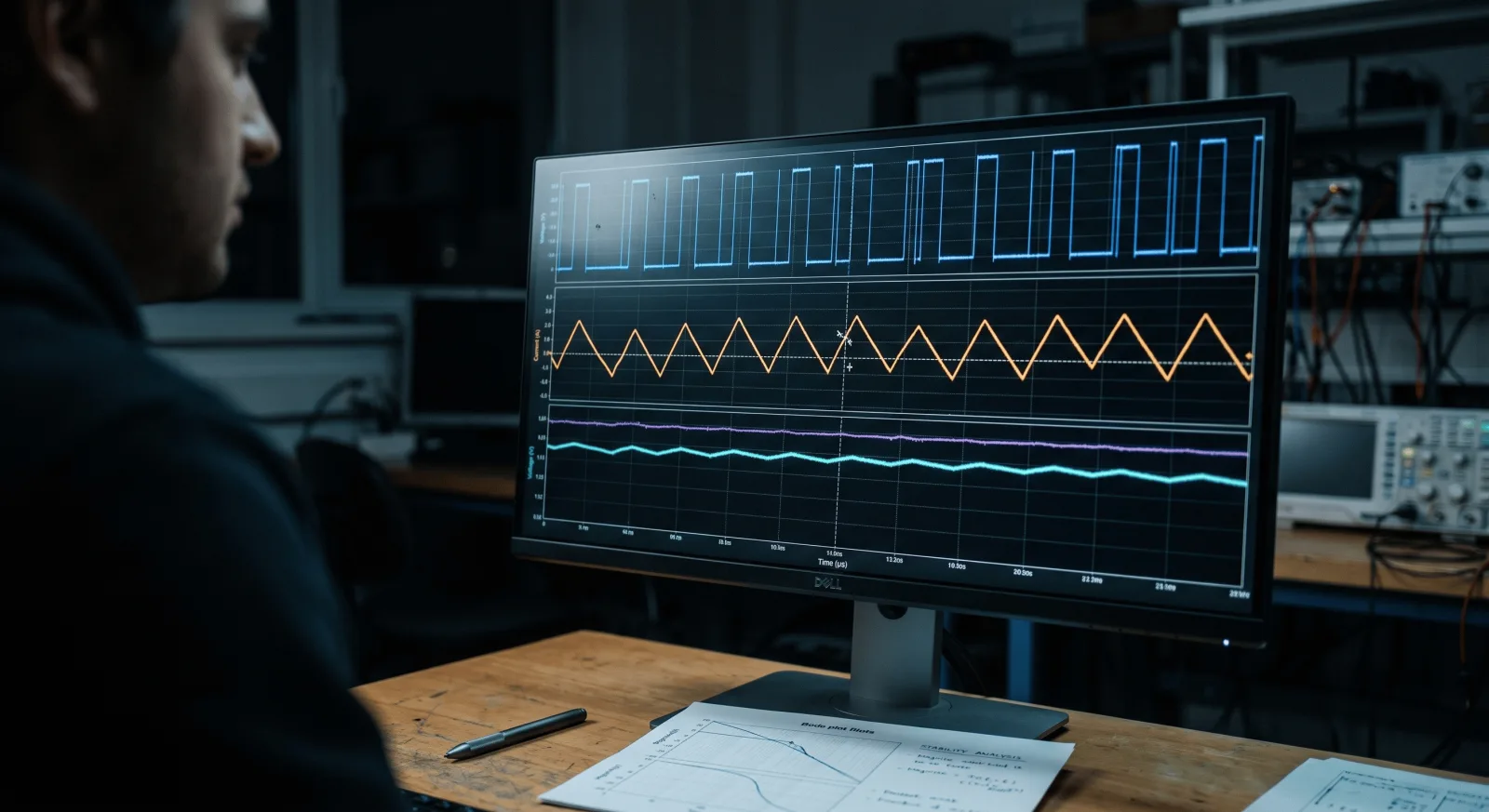

Simulation & Control Design
Power stage, magnetics, and closed-loop control are designed and validated in simulation — waveforms, efficiency, and stability — before hardware.
- Power stage & magnetics sizing
- Control loop & stability (bode)
- Waveforms verified before hardware
Step 04 · Prototype

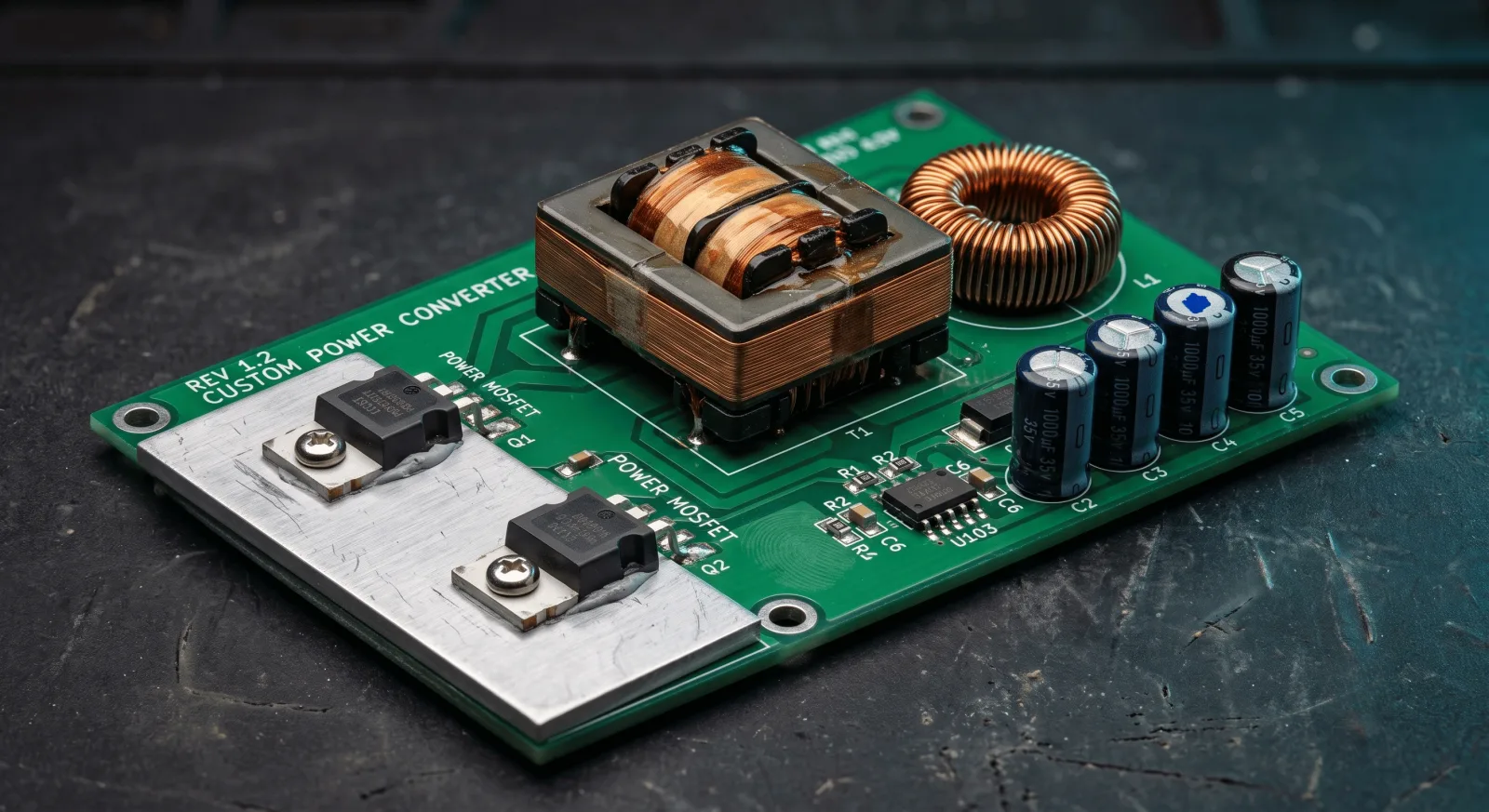

Prototype & Magnetics
PCB layout, magnetics build, component sourcing, assembly, and the first power-up and bring-up of a real, working converter.
- PCB layout & magnetics build
- Sourcing & assembly
- First power-up & bring-up
Step 05 · Validation

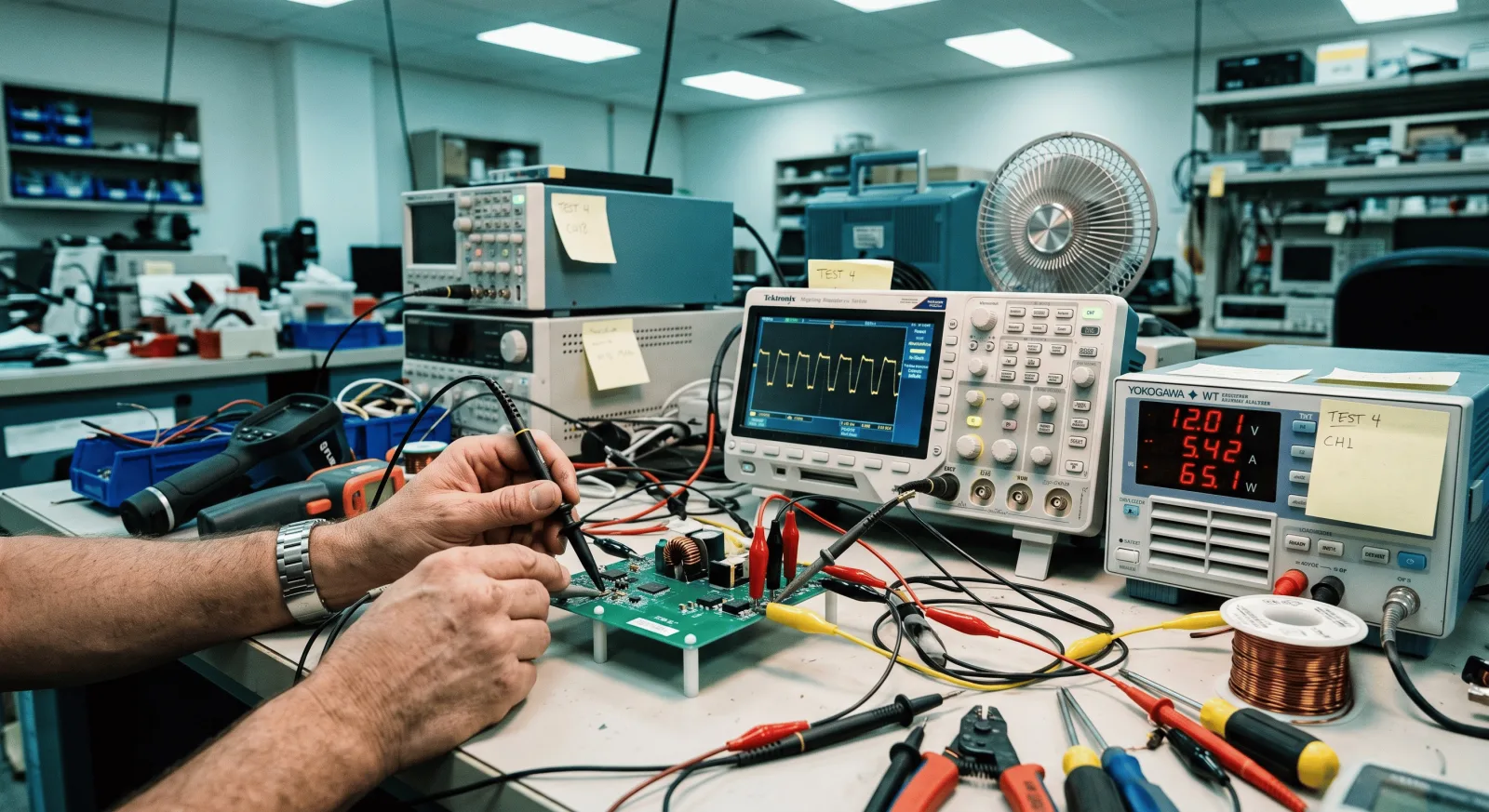

Test, Efficiency & EMI
Bench testing for efficiency, regulation, ripple, thermal, and EMI — iterating until the converter meets every target.
- Efficiency, regulation & ripple
- Thermal & protection checks
- EMI pre-compliance & iteration
Step 06 · Delivery
Delivery & Documentation
Reports, schematics, magnetics details, BOM, PCB files, and measured data are handed over with a walkthrough so you can move forward with confidence.
- Reports, schematics & magnetics
- BOM, PCB files & test data
- Walkthrough & complete handover
What You Receive
A converter you can measure, defend, and build
Every engagement ends with a tangible package — the design intelligence, the hardware, and the measured evidence that it performs, ready for your next step toward a product.
- Simulation reports with waveforms & results
- Schematics and design calculations
- Magnetics design (core, turns, gap)
- PCB layout and manufacturing files
- Bill of materials (BOM)
- Working prototype and bring-up notes
- Measured efficiency / thermal / EMI data
- Documentation & handover
Engineered for efficiency & reliability
- Loss-budgeted for high efficiency
- Thermal and derating considered from day one
- EMI-aware layout and filtering
- Clean, reviewable design and documentation
- A clear path from prototype toward production
Inside The Work
From topology sketches to bench-measured converters
A look at how converters actually take shape — selection, simulation, prototyping, and measurement.
Where It's Used
Converters for products, energy systems, and research
SMPS & adaptorsCompact, efficient AC-DC and DC-DC supplies for products and instruments.
Battery chargers (12W–2kW)Charge-profile and protection-aware converter stages for battery systems.
EV & mobility powerOn-board and DC-DC conversion for electric vehicles and light mobility.
Solar & renewable / MPPTDC-DC and inverter stages with maximum-power-point tracking.
Motor-drive & inverter stagesDC-AC inverters and drive front-ends for motion and power systems.
Lab & instrumentation suppliesProgrammable, clean, well-regulated supplies for benches and test setups.
Why Power4All
A team that simulates, builds, and teaches converters every day
Power4All is a power-electronics education and engineering platform — so your converter is guided by people who live in both the theory and the hardware.
Simulation-first proof
We build our own converter simulators and virtual labs, so your design is validated and visualized before hardware — cutting cost and risk.
Real converter depth
AC-DC, DC-DC, and DC-AC across many topologies from 12W to 2kW — practical converter experience, not just slides.
Magnetics + control together
Power stage, magnetics, and closed-loop control are designed as one system, so regulation and efficiency actually hold up.
Efficiency & EMI focus
We design and measure for efficiency, thermal margin, and EMI so the converter is production-minded, not just functional.
Education-grade documentation
Because we teach, we explain. You get clear reports and documentation your team or examiner can actually follow.
Built to iterate
Converters rarely hit spec on the first build. We plan for measurement, refinement, and a second pass so the result truly meets target.
FAQ
Converter development — common questions
AC-DC front-ends and rectifiers (including PFC), the full range of DC-DC converters (buck, boost, buck-boost, SEPIC, Cuk, flyback, forward, LLC, and phase-shift), and DC-AC inverters — typically from 12W to 2000W for products, labs, and academic work.
We match the topology to your input and output range, power level, isolation needs, efficiency target, size, and cost. A short trade-off study plus simulation confirms the best choice before any hardware is built.
Yes. Inductor and transformer design — core, turns, air gap, and loss estimation — is part of the work, alongside the power stage, gate drive, sensing, protection, and closed-loop control.
Absolutely. We analyse and simulate your current design, then re-engineer the power stage, magnetics, layout, and control to improve efficiency, thermals, and conducted/radiated emissions toward pre-compliance.
Simulation and design reports, schematics and calculations, magnetics design, PCB layout and BOM, a working prototype, measured efficiency/thermal/EMI data against targets, and complete documentation for handover.
Share your specifications — input and output voltage, power, isolation, efficiency and size targets, constraints, and timeline — through the consultancy request form. We review it and send back a clear scope and path.
Start Your Converter
Need a converter designed or improved?
Tell us your input and output voltage, power, isolation, efficiency target, and timeline. We'll propose the right topology and a clear path for simulation, prototyping, testing, and delivery.
